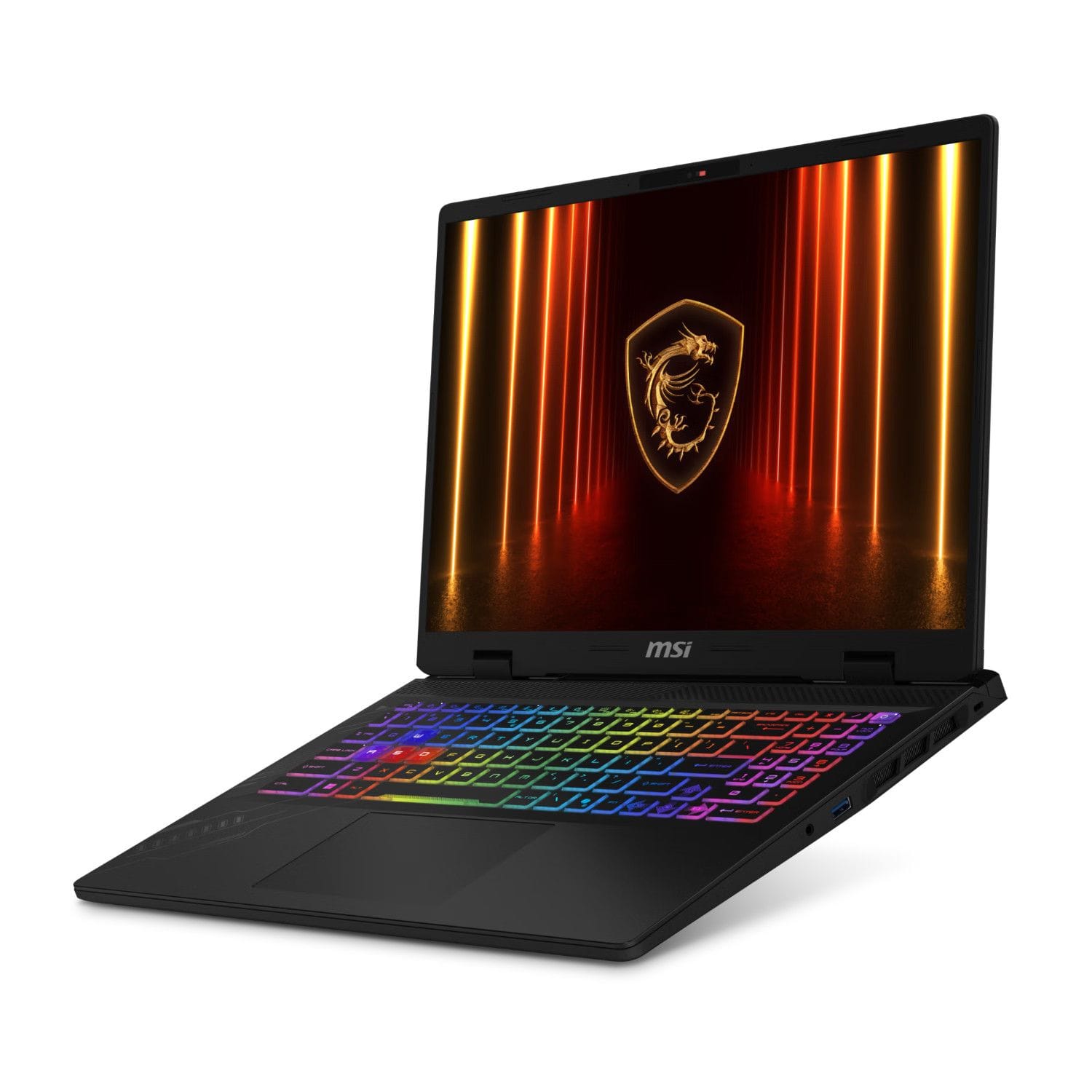

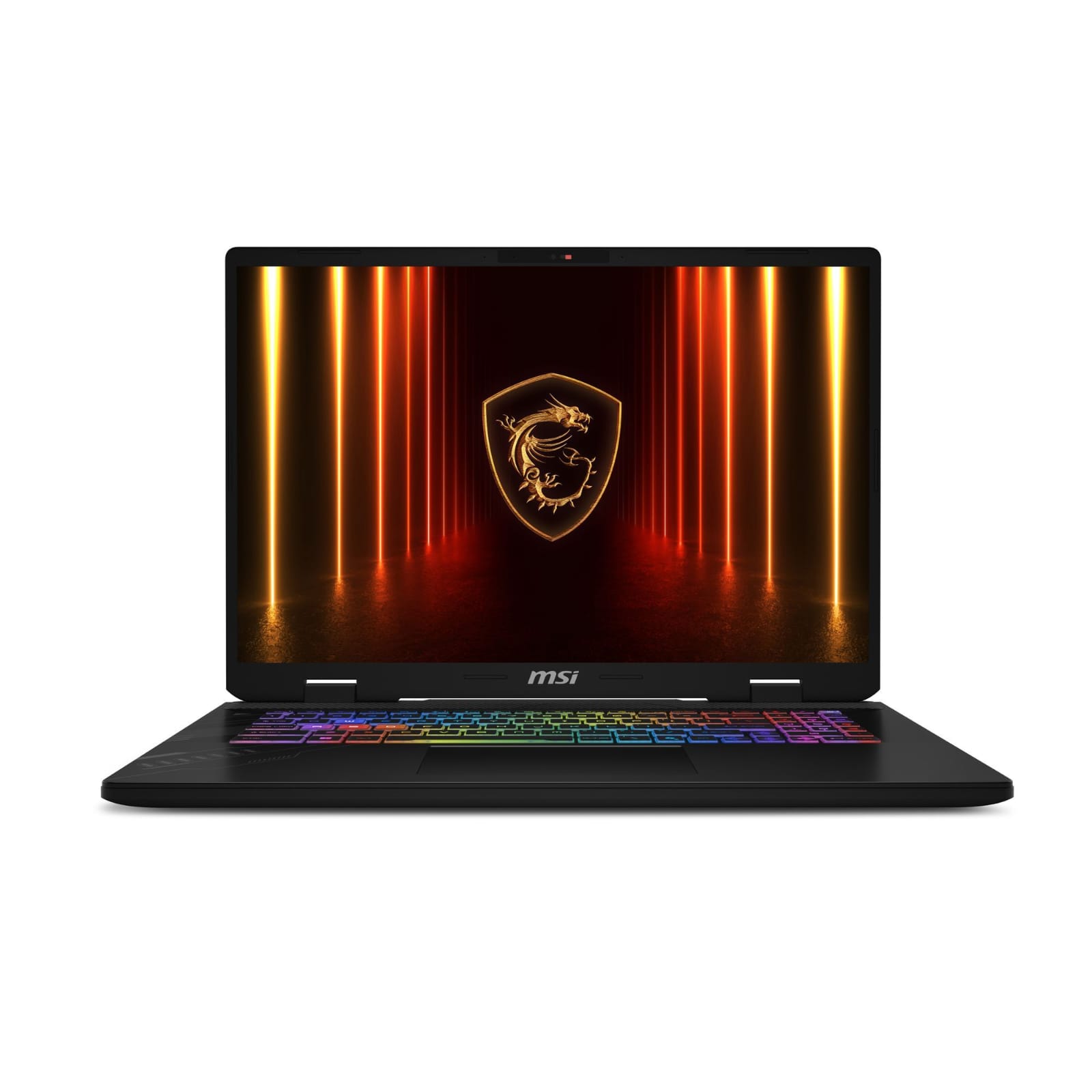

MSI Katana 16 (2025) Full Specification
MSI Katana 16 (2025 Sharpened Dragon Edition) is a high-performance gaming and creator laptop powered by the AMD Ryzen 9 7945HX processor, NVIDIA GeForce RTX 5070 graphics, a 16-inch 2.5K 240Hz display, DDR5 memory, PCIe Gen5 SSD storage, advanced cooling, and AI-enhanced performance features.
| Category | Specification |
|---|---|
| Model | MSI Katana 16 2025 Sharpened Dragon Edition |
| Operating System | Windows 11 Home |
| Processor | AMD Ryzen 9 7945HX |
| CPU Architecture | Zen 4, 5nm process |
| CPU Cores / Threads | 16 Cores / 32 Threads |
| CPU Max Clock | Up to 5.4GHz |
| CPU Cache | 80MB L2 + L3 Cache |
| Graphics Card | NVIDIA GeForce RTX 5070 Laptop GPU |
| GPU Architecture | NVIDIA Blackwell Architecture |
| GPU Memory | 8GB GDDR7 |
| GPU Power | Up to 115W |
| AI Performance | Up to 798 TOPS |
| Graphics Technologies | DLSS 4, 5th Gen Tensor Cores, 4th Gen RT Cores, NVIDIA Reflex 2, NVIDIA Studio, NVIDIA ACE, G-SYNC |
| Display Size | 16-inch |
| Display Resolution | 2560 × 1600, 2.5K |
| Aspect Ratio | 16:10 |
| Refresh Rate | 240Hz |
| Brightness | 500 nits |
| Color Gamut | 100% DCI-P3 |
| Memory | 16GB DDR5 5600MHz |
| Memory Upgrade | 2 RAM slots, supports up to 96GB |
| Storage | 1TB SSD |
| Storage Interface | PCIe Gen5 + PCIe Gen4 support |
| Storage Expansion | 2 × M.2 SSD slots |
| Cooling System | MSI Cooler Boost with shared heat pipe design |
| Cooling Hardware | 2 cooling fans, 5 FrozenTube heat pipes, improved fan blades |
| Total Performance Output | Up to 190W combined CPU + GPU power |
| Keyboard | 24-zone RGB backlit keyboard |
| Special Keyboard Feature | Semi-transparent WASD keys, comfortable long key travel |
| Audio | Hi-Res Audio, Nahimic by SteelSeries |
| Speakers | Dual speakers with large chamber audio design |
| Microphone | Multi-array microphone |
| Webcam | HD webcam with 3DNR video noise reduction |
| Privacy Feature | Physical webcam privacy shutter |
| Security | Kensington lock slot |
| Wireless | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| LAN | RJ-45 Gigabit Ethernet |
| USB Ports | 3 × USB 3.2 Gen2 Type-A, 1 × USB 3.2 Gen2 Type-C |
| USB-C Support | DisplayPort and PD 3.0 support |
| HDMI | HDMI 2.1, supports up to 8K@60Hz or 4K@120Hz |
| Audio Jack | 3.5mm combo audio jack |
| Power Port | Dedicated DC-in power port |
| Battery | 90Wh |
| Charging | 240W power adapter, 100W PD 3.0 fast charging support |
| GPU Mode | MUX switch with discrete GPU mode, hybrid mode, and integrated graphics mode |
| Software | MSI Center with system monitoring, optimization, scenario presets, and fan/noise control |
| AI Features | MSI AI Engine, AI performance tuning, AI noise reduction, intelligent scene switching |
| Build | Metal A-cover, sci-fi design, RGB Dragon Shield logo |
| Dimensions | 359 × 266.4 × 27.9 mm |
| Weight | Approx. 2.5 kg |
| Warranty | 2 Year Manufacturer’s Official Warranty |
Warranty Information
This laptop includes a 2 Year Manufacturer’s Official Warranty. Warranty coverage may include official manufacturer support for major hardware components according to the manufacturer’s warranty policy.
